How do I determine the right model for my application?
Decision process:
If you are viewing this newsletter as the HTML version, you will see a
templates describing how to "assemble" the part number for the new
pH/ORP sensor range. If you can see the template, you can print just the
templates (rather than the whole newsletter) if you want a handy
reference.
If the templates are displayed with the ADOBE ACROBAT tool bar
revealed, click on the "Print" button on the ACROBAT tool bar.
If the ACROBAT tool bar is not revealed, RIGHT CLICK within the
template and an ADOBE window will open and you can print from that.
| Replaceable cartridges for pH | ||
| Order Code | Description | Price |
| P-PH-HLSP-SJ01 | single junction - conical glass | $150.00 |
| P-PH-HOB1-0005 | Teflon double junction - flat glass | $220.00 |
| P-PH-HOB1-0007 | Teflon double junction - round glass | $220.00 |
| P-PH-HJRB-SS01 | Solid State junction - round glass | $270.00 |
| P-PH-HJFG-SS01 | Solid State junction - flat glass | $270.00 |
| Replaceable cartridges for ORP (Redox) | ||
| P-OR-RBLP-SJ01 | single junction - platinum pin | $160.00 |
| P-OR-ROB1-0001 | Teflon double junction - platinum ring | $265.00 |
| P-OR-RJRB-SS01 | Solid State junction - platinum ring | $295.00 |
| Add the cartridge price to the sensor body price | ||
| Sensor body with: | ||
 |
1m cable and no temperature sensor | $160.00 |
| 5m cable and no temperature sensor | $170.00 | |
| 10m cable and no temperature sensor | $190.00 | |
| 1m cable and Pt1000 temperature sensor | $170.00 | |
| 5m cable and Pt1000 temperature sensor | $185.00 | |
| 10m cable and Pt1000 temperature sensor | $205.00 | |
| 1m cable and Pt100 temperature sensor | $170.00 | |
| 5m cable and Pt100 temperature sensor | $185.00 | |
| 10m cable and Pt100 temperature sensor | $205.00 | |
Here's an example:
You want to order a pH electrode for a relatively clean wastewater application.
The electrode is to be mounted on a 1m standpipe into an open tank. The transmitter is close-by so you only need a 5m cable.
The temperature does not vary greatly but, considering it costs only marginally more to get a sensor with inbuilt temperature sensing, you might as well get that too.
So you choose a P-PHAN051K05MBN at a cost of $405.00 list price.
For this you get the sensor body with 5m cable and Pt1000 and pH sensor cartridge in a nice box. In the box you also get 2 free buffer sachets and instructions
In future the replacement cartriges will only set you back $220.00 (list price).
Please note: the above prices are our current prices and subject to change. The prices are in Australian dollars, do not include freight or GST.
Go to top of pageAIC also designs and manufactures a wide range of instrumentation to take full advantage of the wide range of pH and ORP electrodes available.
Some of these are listed below.
 |
PM4-PH Panel Mount pH monitor/control. Single pH input with temperature compensation input. The model offers a very wide range of displays, supply power and output options. PM4-OR Panel Mount ORP monitor/control. Single ORP input with temperature compensation input. The model offers a very wide range of displays, supply power and output options. PM4-PH Brochure, PM4-OR Brochure |
 |
RM4-PH DIN Rail mount monitor/control for pH or ORP applications. This instrument is equipped with a single pH or ORP input with temperature compensation input. The RM4-PH features a wide range of power supply and output/retransmission options. RM4-PH Brochure |
 |
RT4-PH FIeld mount, loop powered display/transmitter. This instrument accepts a single pH or ORP electrode and can also accept a temperature probe for compensation measurements. The RT4 is powered by a 2 wire loop and converts the pH or ORP signal to a fully isolated 4-20mA analog retransmission. The instrument has a 4 digit LCD display. The field mount enclosure is IP65 rated. RT4-PH Brochure |
 |
HH4-PH Hand held pH meter. This instrument accepts a single pH electrode and can also accept a temperature probe for compensation measurements. The HH4-PH is powered by a single 9V battery and offers full calibration functions. The display is 4 digit LCD and the instrument features and automatic "switch off" to conserve battery life. The HH4-PH can also be used for ORP measurement with the display showing millvolts (mV) HH4-PH Brochure |
 |

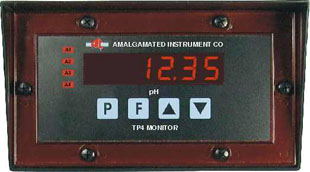

TP4-PH This wall mounted IP65 protected unit offers superb flexibility. With two pH or ORP inputs and one temperature compensation input, it allows for the close monitoring of multiple points in a process. Four on-board setpoint relays allow the instrument to be used for alarm and control. Relays 1 & 2 also offer Proportional/Integral (PI) control capability. TP4-PH Brochure |
A datalogging feature is available as an option for the TP4-PH (and other TP4 and TP488 instrumentation). On-board memory can store data and this can be downloaded via a serial retransmission. AIC makes a suite of software available as part of this feature. The data logger software runs on a Windows TM based PC and offers the ability to develop highly configurable graphs as well as the ability to store the data in spreadsheet format. The datalogger feature is available in 32K or 128K memory sizes and the amount of data stored depends on the sample interval.
As an example, with the 128K memory size installed and with a sample rate of one sample per hour, the TP4-PH would store up to 266 days of data (that's over 8 months!).
Software is available for "live" downloading of
data from a PM4-PH or RM4-PH equipped with a serial retransmission option. As
with the TP4 feature, the software can develop graphs for monitoring
purposes.
Datalogging Feature
brochure
For information on all AIC's pH and ORP products - visit the pH and ORP Applications page.
