Panel Meters & Displays

• PM4 Panel Mount Monitors

• PM6 Panel Mount Displays

• Accessories for PM4 & PM6

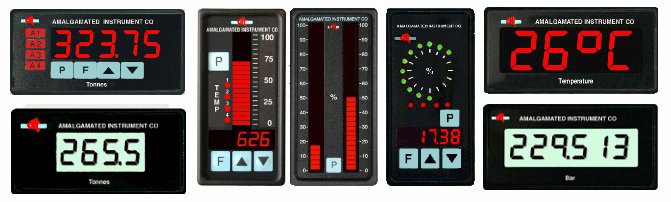

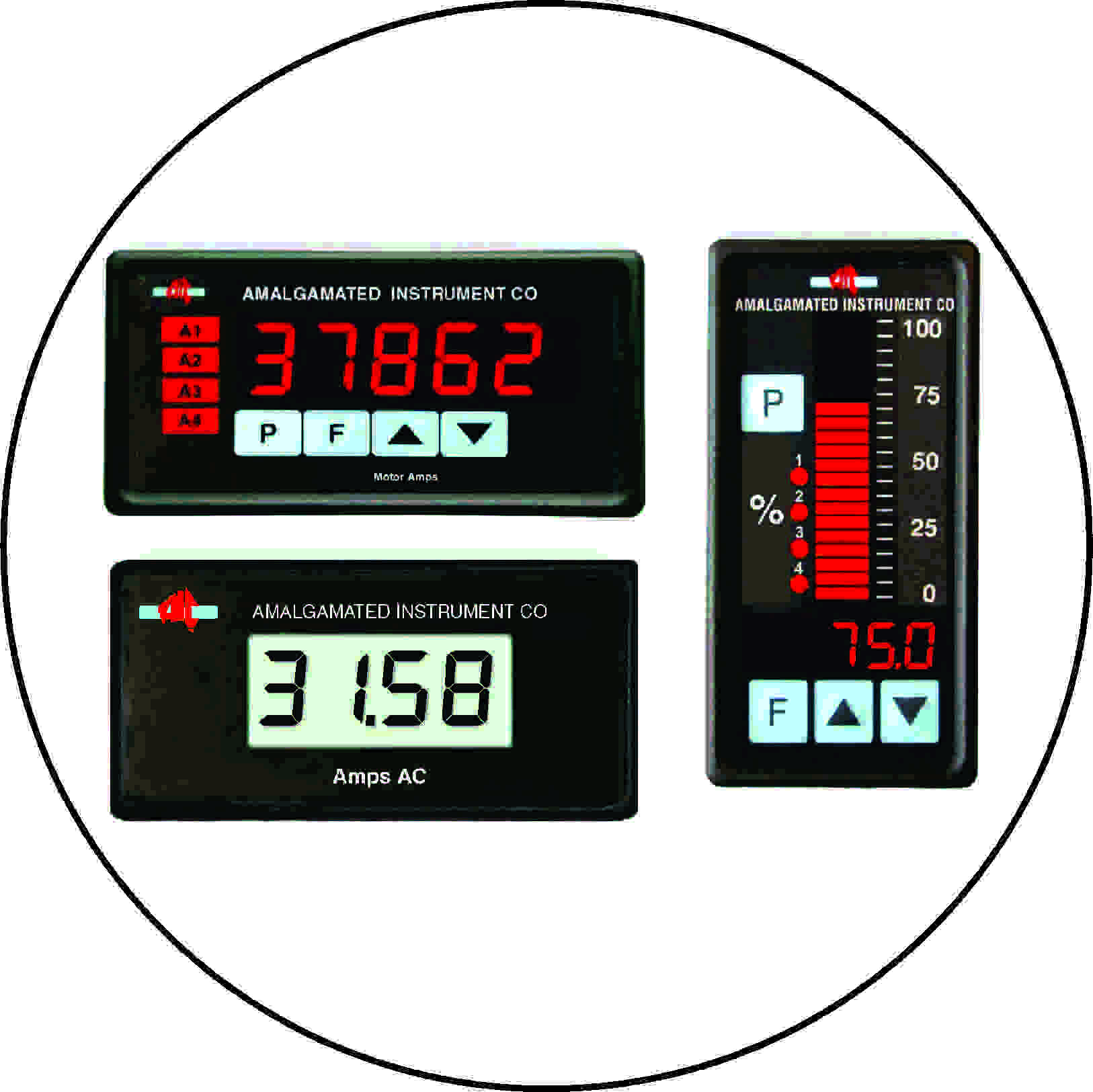

PM4 Panel mount Monitors

The PM4 range of panel mount monitors can function as displays, alarms, controllers, signal converters, and computer/PLC interfaces.
The range offers a very wide choice of inputs with a wide range of options for power supplies, displays, and output combinations.

Applications available in PM4 range

• DC Analog input

  • ±20mA, 4-20mA, ±100mV, ±1V, ±10V or ±100V
  • 3-wire slidewire
  • 3 channel analog input with arithmetic functions
  • Totaliser with analog input
  • Dual bargraph indicator - isolated analog inputs

• Pulse input - Rate, total, grand total

• Weight, load, force, pressure

• pH

• ORP (Redox)

• Conductivity

• Lineariser

  • 50 point lineariser
  • Dual input - 30 point linearising on each channel
  • Totaliser with 50 point linearising

• 3-wire slidewire

• Quadrature encoder input

• BCD, Binary or Gray Code input

• Serial Data Input

  • RS323
  • RS485 including arithmetic operations
  • RS422
  • Serial Current Loop
  • SSI (Synchronous Serial Interface)

• Temperature measurement

  • Multi-input 2-wire or 3-wire RTD
  • Thermocouple, RTD or 4-20 mA

• Real Time Clock

• Multifunction Timer

• Auto/manual loading station

• AC Voltage

• AC Current

• Datalogging - standalone or PM4 option

PM6 Panel Mount Displays

The PM6 range is an economical range of intelligent panel mount displays. They are available in a range of inputs and with a range of power supply options. The display is a huge 20mm 4 digit LED display with a viewing distance of 10 metres.

Applications available in PM6 range

• Totaliser and/or Ratemeter - pulse input

• Configurable Panel Meter Display - analog input

• Temperature Indicator - 2-wire or 3-wire RTD input

• Potentiometer Indicator - 3-wire slidewire input

• 2-wire loop powered indicators

  • 4 digit LCD display
  • 6 digit LCD display with rate/totaliser functions

PM4 & PM6 panel mount product accessories

• 12 position panel mount selector switch

• Enclosures and covers for panel mount intruments

  • IP65 hinged clear plastic access cover
  • Wall mount enclosure for PM4 & PM6 monitors
  • Wall mount enclosure with IP65 cover

Quick reference guide to AIC's panel mount products
Introducing the range of applications and displays available in the PM4 & PM6 ranges
